Introduction to Unsupervised Learning Methods

Overview

The goal of this notebook is two-fold:

1. To provide a self-contained introduction/tutorial on popular dimension reduction and clustering methods, and
2. To demonstrate how to implement these methods in R and Python

Throughout this notebook, we will be using a presidential_speech dataset — a dataset containing log-transformed word counts from important speeches by U.S. presidents. More specifically, the dataset contains the top 75 most variable log-transformed word counts for each US president aggregated over several speeches (Inaugural, State of the Union, etc.). This dataset was taken from the clustRviz R package. For visualization purposes, we have also created a pres_period dataset that indicates the historical period of each U.S. president (i.e., founding fathers, pre-Civil War, pre-WWII, or modern).

Loading in the data

R

DATA_DIR <- file.path("..", "data")
pres_speech <- data.table::fread(
  file.path(DATA_DIR, "pres_speech.csv")
) |>
  tibble::column_to_rownames("V1") |>
  as.data.frame()
pres_period <- read.csv(
  file.path(DATA_DIR, "pres_period.csv")
)$x

head(pres_speech[, 1:6])

                    amount appropri  british     cent commerci commission
Abraham Lincoln   3.433987 2.397895 1.791759 2.564949 2.708050   2.079442
Andrew Jackson    4.248495 4.663439 2.995732 1.945910 3.828641   3.218876
Andrew Johnson    4.025352 3.091042 2.833213 3.332205 2.772589   2.079442
Barack Obama      1.386294 0.000000 0.000000 1.386294 0.000000   0.000000
Benjamin Harrison 4.060443 4.174387 2.302585 4.304065 3.663562   3.465736
Calvin Coolidge   3.713572 4.094345 1.386294 3.555348 2.639057   1.609438

Python

import pandas as pd
from os.path import join as oj

DATA_DIR = oj("..", "data")
pres_speech = pd.read_csv(oj(DATA_DIR, "pres_speech.csv"), index_col=0)
pres_period = pd.read_csv(oj(DATA_DIR, "pres_period.csv"))["x"]

pres_speech.head()

                     amount  appropri   british  ...    worker    inflat    soviet
Abraham Lincoln    3.433987  2.397895  1.791759  ...  0.000000  0.000000  0.000000
Andrew Jackson     4.248495  4.663439  2.995732  ...  0.000000  0.000000  0.000000
Andrew Johnson     4.025352  3.091042  2.833213  ...  0.000000  0.000000  0.000000
Barack Obama       1.386294  0.000000  0.000000  ...  4.189655  1.098612  1.386294
Benjamin Harrison  4.060443  4.174387  2.302585  ...  0.000000  0.000000  0.000000

[5 rows x 75 columns]

Plotting helper functions

Before jumping in, let us also create some plotting helper functions that we will use throughout this notebook.

R

plot_scatter <- function(X, components = 1:2,
                         color = NULL, labels = NULL,
                         point_size = 3, ...) {
  if (length(components) == 2) {
    # plot 2d scatter plot
    x_var <- names(X)[components[1]]
    y_var <- names(X)[components[2]]
    if (is.null(color)) {
      if (!is.null(labels)) {
        plt <- X |>
          dplyr::mutate(.label = labels) |>
          ggplot2::ggplot() +
          ggplot2::aes(
            x = .data[[x_var]], y = .data[[y_var]], label = .label
          )
      } else {
        plt <- X |>
          ggplot2::ggplot() +
          ggplot2::aes(
            x = .data[[x_var]], y = .data[[y_var]]
          )
      }
    } else {
      if (!is.null(labels)) {
        plt <- X |>
          dplyr::mutate(.label = labels) |>
          dplyr::bind_cols(.color = color) |>
          ggplot2::ggplot() +
          ggplot2::aes(
            x = .data[[x_var]], y = .data[[y_var]],
            color = .color, label = .label
          )
      } else {
        plt <- X |>
          dplyr::bind_cols(.color = color) |>
          ggplot2::ggplot() +
          ggplot2::aes(
            x = .data[[x_var]], y = .data[[y_var]], color = .color
          )
      }
    }
    if (!is.null(labels)) {
      plt <- plt +
        ggplot2::geom_text(size = point_size)
    } else {
      plt <- plt +
        ggplot2::geom_point(size = point_size)
    }
  } else {
    # plot pair plot
    plt <- ggwrappers::plot_pairs(
      X,
      columns = components,
      color_lower = color,
      point_size = point_size
    )
  }
  plt <- plt +
    ggplot2::labs(color = "Period") +
    ggplot2::theme_minimal(...)
  return(plt)
}

Python

import matplotlib.pyplot as plt
import numpy as np

def plot_scatter(X, components=[0, 1], color=None, labels=None, point_size=3, fontsize=8):
  colormap = {'Founding Fathers': '#F8766D', 'Modern': '#7CAE00', 'Pre-Civil War': '#00BFC4', 'Pre-WW2': '#C77CFF'}
  color = pres_period.map(colormap)
  if len(components) == 2:
    # plot 2d scatter plot
    x_var = X.columns[components[0]]
    y_var = X.columns[components[1]]
    if color is None:
      if labels is not None:
        plt.scatter(X[x_var], X[y_var], s=0)
        for i in range(X.shape[0]):
          plt.text(X[x_var][i], X[y_var][i], labels[i], fontsize=fontsize)
      else:
        plt.scatter(X[x_var], X[y_var], s=point_size)
    else:
      if labels is not None:
        plt.scatter(X[x_var], X[y_var], s=0)
        for i in range(X.shape[0]):
          plt.text(X[x_var][i], X[y_var][i], labels[i], c=color[i], fontsize=fontsize)
      else:
        plt.scatter(X[x_var], X[y_var], c=color, s=point_size)
    plt.xlabel(x_var)
    plt.ylabel(y_var)
    plt.legend()
  else:
    # plot pair plot
    pd.plotting.scatter_matrix(X, c=color, s=point_size)
  plt.show()


Dimension Reduction

Principal Components Analysis (PCA)

Principal Components Analysis (PCA) aims to find a lower-dimensional (linear) projection of the data that captures as much of the variance in the data as possible. The first principal component is the direction in which the data varies the most, the second principal component is the direction that captures the most variance after accounting for the first principal component, and so on.

More formally, given data \(\mathbf{X} \in \mathbb{R}^{n \times p}\), the \(j^{th}\) principal component, denoted \(\mathbf{v}_j\), solves the following optimization problem:

\[\begin{align*} \hat{\mathbf{v}}_j = \underset{\mathbf{v} \in \mathbb{R}^p}{\operatorname{argmax}} \;\; \operatorname{Var}(\underbrace{\mathbf{X}\mathbf{v}}_{\substack{\text{projection}\\ \text{of data } X\\ \text{ onto}\\\text{direction } \mathbf{v}}}) \quad \text{subject to} \quad \underbrace{\lVert \mathbf{v} \rVert_2^2 = 1, \; \mathbf{v}^T\hat{\mathbf{v}}_i = 0 \; \text{ for } i = 1, \ldots, j-1.}_{\text{constrained to be orthogonal to all previous PCs}} \end{align*}\]

In words, we want to find the principal component (or direction) \(\hat{\mathbf{v}}_j\) such that when we project the data \(\mathbf{X}\) onto this direction, the variance of the projected data is maximized. Moreover, we want to do this while ensuring that the direction \(\mathbf{v}_j\) is scaled to have unit length (i.e., \(\lVert \hat{\mathbf{v}}_j \rVert_2^2 = 1\)) and is orthogonal to all previous principal components (i.e., \(\hat{\mathbf{v}}_j^T\hat{\mathbf{v}}_i = 0\) for \(i = 1, \ldots, j-1\)).

Toy Examples

To build some intuition, let’s look at a few toy examples of PCA in action.

Mixture of Gaussian

Original Data

# Generate three clusters in 3D space
n <- 100  # Number of points per cluster

# Define means and covariance matrices for each cluster
mu1 <- c(0, 0, 0)
mu2 <- c(5, 5, 5)
mu3 <- c(-5, 5, 0)

sigma <- diag(3)  # Identity covariance (spherical clusters)

# Sample points from multivariate normal distributions
cluster1 <- MASS::mvrnorm(n, mu1, sigma)
cluster2 <- MASS::mvrnorm(n, mu2, sigma)
cluster3 <- MASS::mvrnorm(n, mu3, sigma)

# Combine data
data <- rbind(cluster1, cluster2, cluster3)
labels <- factor(rep(1:3, each = n))  # Cluster labels

# 3D Visualization
pltly <- plotly::plot_ly(
  data = as.data.frame(data) |> setNames(c("X", "Y", "Z")),
  x = ~X,
  y = ~Y,
  z = ~Z,
  color = labels,
  type = "scatter3d",
  marker = list(size = 3)
)
pltly |>
  plotly::layout(
    scene = list(
      xaxis = list(visible = FALSE),
      yaxis = list(visible = FALSE),
      zaxis = list(visible = FALSE)
    )
  )

PCA Projection

pltly |>
  plotly::layout(
    scene = list(
      xaxis = list(showgrid = FALSE),
      yaxis = list(showgrid = FALSE),
      zaxis = list(showgrid = FALSE)
    )
  )

pca_out <- prcomp(data)
scores <- as.data.frame(pca_out$x)
plot_scatter(scores, color = labels) +
  ggplot2::labs(color = "") +
  ggplot2::scale_color_manual(
    values = c("#66C2A4", "#F48D62", "#8E9FCA")
  )

Main Takeaway: Gaussian data is the ideal scenario for PCA.

Correlated Gaussian

Original Data

# Number of samples
n <- 500

# Mean vector (location of the distribution)
mu <- c(0, 0)

# Covariance matrix (controls correlation)
rho <- 0.8  # Desired correlation
sigma <- matrix(c(1, rho, rho, 1), nrow = 2)  # Covariance matrix

# Generate correlated data
data <- MASS::mvrnorm(n, mu, sigma)

# Convert to a data frame
df <- data.frame(x = data[, 1], y = data[, 2], z = rnorm(n))

pltly <- plotly::plot_ly(
  data = df,
  x = ~x,
  y = ~y,
  z = ~z,
  marker = list(color = "black", size = 3),
  type = "scatter3d"
)
pltly |>
  plotly::layout(
    scene = list(
      xaxis = list(visible = FALSE),
      yaxis = list(visible = FALSE),
      zaxis = list(visible = FALSE)
    )
  )

PCA Projection

pltly |>
  plotly::layout(
    scene = list(
      xaxis = list(showgrid = FALSE),
      yaxis = list(showgrid = FALSE),
      zaxis = list(showgrid = FALSE)
    )
  )

pca_out <- prcomp(df)
scores <- as.data.frame(pca_out$x)
plot_scatter(scores)

pca_out$rotation[, 1:2]

         PC1        PC2
x -0.6878579  0.1158234
y -0.7041547  0.1330480
z -0.1761182 -0.9843186

Main Takeaway: PCs typically group correlated variables together.

Skewed Data

Original Data

data <- data.table::fread(file.path(DATA_DIR, "tcga_sample.csv"))

plt <- ggplot2::ggplot(data) +
  ggplot2::aes(x = ESR1, y = GATA3) +
  ggplot2::geom_point(size = 0.75) +
  vthemes::theme_vmodern(size_preset = "medium")
plt

plt <- data |>
  tidyr::pivot_longer(
    cols = tidyselect::everything()
  ) |>
  ggwrappers::plot_histogram(
    x_str = "value", bins = 20
  ) +
  ggplot2::facet_wrap(~ name, scales = "free") +
  ggplot2::labs(x = "Gene Expression Value") +
  vthemes::theme_vmodern(size_preset = "medium")
plt

PCA Projection

plt <- ggplot2::ggplot(data) +
  ggplot2::aes(x = ESR1, y = GATA3) +
  ggplot2::geom_point(size = 0.75) +
  ggplot2::geom_abline(
    intercept = -4.944, slope = 1.061
  ) +
  vthemes::theme_vmodern(size_preset = "medium")
plt

pca_out <- prcomp(data)
scores <- as.data.frame(pca_out$x)
plot_scatter(scores)

Main Takeaway: PCA can still be useful for non-Gaussian data as long as variance is still a meaningful measure of information.

Swiss Roll

Original Data

# Number of points
n <- 1000

# Generate the Swiss Roll
t <- (3 * pi / 2) * (1 + 2 * runif(n))  # Spiral angle
x <- t * cos(t)  # X-coordinates (spiral)
y <- runif(n, min = 0, max = 25)  # Adds height variation
z <- t * sin(t)  # Z-coordinates (spiral)

# Create a data frame
data <- data.frame(x, y, z)
swiss_roll <- data.frame(x, y, z, t)

pltly <- plotly::plot_ly(
  data = swiss_roll,
  x = ~x,
  y = ~y,
  z = ~z,
  color = ~t,
  type = "scatter3d",
  marker = list(size = 3)
)
pltly |>
  plotly::layout(
    scene = list(
      xaxis = list(visible = FALSE),
      yaxis = list(visible = FALSE),
      zaxis = list(visible = FALSE)
    )
  )

PCA Projection

pltly |>
  plotly::layout(
    scene = list(
      xaxis = list(showgrid = FALSE),
      yaxis = list(showgrid = FALSE),
      zaxis = list(showgrid = FALSE)
    )
  )

pca_out <- prcomp(data)
scores <- as.data.frame(pca_out$x)
plot_scatter(scores, color = swiss_roll$t) +
  ggplot2::scale_color_viridis_c()

Main Takeaway: PCA fails when the data lies on a non-linear manifold.

Connection between PCA and SVD

Though the PCA optimization problem may look complicated, it turns out that the solution to this problem is actually given by the singular vector decomposition (SVD) of the data matrix \(\mathbf{X}\). To make this connection, let’s write out the SVD of \(\mathbf{X}\) as:

\[\begin{align*} \mathbf{X} = \mathbf{U} \mathbf{D} \mathbf{V}^T, \end{align*}\]

where \(\mathbf{U} = [\mathbf{u}_1, \ldots, \mathbf{u}_n] \in \mathbb{R}^{n \times n}\) and \(\mathbf{V} = [\mathbf{v}_1, \ldots, \mathbf{v}_p] \in \mathbb{R}^{p \times p}\) are orthogonal matrices whose columns are the left and right singular vectors of \(\mathbf{X}\), respectively, and \(\mathbf{D} = \text{diag}(d_1, \ldots, d_{\min\{n, p\}}) \in \mathbb{R}^{n \times p}\) is a diagonal matrix whose diagonal entries are the singular values of \(\mathbf{X}\).

While we won’t prove it here, it can be shown that the \(j^{th}\) principal component of \(\mathbf{X}\) is equal to the \(j^{th}\) right singular vector of \(\mathbf{X}\), i.e., \(\hat{\mathbf{v}}_j = \mathbf{v}_j\). Since the \(j^{th}\) principal component score is the projection of \(\mathbf{X}\) onto the \(j^{th}\) principal component \(\hat{\mathbf{v}}_j\), it then follows that the \(j^{th}\) principal component score is equal to \(\mathbf{X} \hat{\mathbf{v}}_j = \mathbf{X} \mathbf{v}_j = \mathbf{U} \mathbf{D} \mathbf{V}^T \mathbf{v}_j = d_j \mathbf{u}_j\). Moreover, the variance explained by the \(j^{th}\) principal component is equal to \(d_j^2\), and the proportion of variance explained by the \(j^{th}\) principal component is equal to \(\frac{d_j^2}{\sum_i d_i^2}\).

In particular, the first principal component direction (i.e., the direction that explains the most variance in the data) is given by the first right singular vector of \(\mathbf{X}\), and the first principal component score is given by the first left singular vector of \(\mathbf{X}\) scaled by the first singular value.

This connection between PCA and SVD is important because it allows us to quickly compute all of the principal components in one go (by computing the full SVD of \(\mathbf{X}\)). Moreover, this is a global and unique solution to the PCA problem (assuming that the data matrix \(\mathbf{X}\) is not degenerate to begin with).

Summary

• PCA is a linear dimension reduction method that aims to find a lower-dimensional representation of the data that preserves as much of the variance in the data as possible.
• PCA can be solved by computing the singular value decomposition (SVD) of the data matrix \(\mathbf{X}\) (for which there are very fast and well-studied algorithms).

Implementation

R

pca_out <- prcomp(pres_speech)
scores <- as.data.frame(pca_out$x)
plot_scatter(
  scores, color = pres_period, labels = rownames(pres_speech)
)

To further interpret the PCA results, we can look at two more things:

1. The principal component loadings (i.e., the weights of each feature in each principal component):

   loadings <- as.data.frame(pca_out$rotation)
   head(loadings[, 1:4])

                     PC1         PC2         PC3          PC4
   amount     0.07107095 -0.17596440  0.06091322 -0.097782825
   appropri   0.05405329 -0.17452316 -0.01563449 -0.125108237
   british    0.10676581 -0.08491384  0.14387760 -0.118530848
   cent       0.03844298 -0.17381103 -0.13962406  0.231936775
   commerci   0.07914213 -0.14343549  0.04670284  0.005292478
   commission 0.10930872 -0.11290485  0.07885599  0.096474045

   which we might want to sort by their magnitude to see which features (in this case, words) are most important in each principal component, e.g., for PC1:

   loadings |>
     tibble::rownames_to_column("word") |>
     dplyr::mutate(
       rank = rank(-abs(PC1)),
       PC1 = sprintf("%s (%.2f)", word, PC1)
     ) |>
     dplyr::arrange(rank) |>
     dplyr::select(rank, PC1) |>
     head()

     rank             PC1
   1    1 program (-0.22)
   2    2    help (-0.20)
   3    3     job (-0.19)
   4    4  budget (-0.19)
   5    5 billion (-0.18)
   6    6   today (-0.18)

2. The proportion of variance explained by each principal component:

   var_explained <- pca_out$sdev^2 / sum(pca_out$sdev^2)

   which we can visualize in a scree plot:

   data.frame(
     PC = seq_along(var_explained),
     cum_var_explained = cumsum(var_explained)
   ) |>
     ggplot2::ggplot() +
     ggplot2::aes(x = PC, y = cum_var_explained) +
     ggplot2::geom_point() +
     ggplot2::geom_line() +
     ggplot2::labs(
       x = "Number of Components",
       y = "Cumulative Proportion of Variance Explained"
     ) +
     ggplot2::theme_minimal()



Python

from sklearn.decomposition import PCA

pca = PCA()
pca_scores = pd.DataFrame(pca.fit_transform(pres_speech))
pca_scores.columns = [f"PC{i+1}" for i in range(pca_scores.shape[1])]
plot_scatter(
  pca_scores, color=pres_period, labels=pres_speech.index
)

To further interpret the PCA results, we can look at two more things:

1. The principal component loadings (i.e., the weights of each feature in each principal component):

   loadings = pd.DataFrame(pca.components_.T)
   loadings

             0         1         2   ...        41        42        43
   0  -0.071071  0.175964  0.060913  ...  0.013240 -0.098213 -0.085237
   1  -0.054053  0.174523 -0.015634  ... -0.209700  0.155581  0.131384
   2  -0.106766  0.084914  0.143878  ...  0.107594 -0.005823  0.140929
   3  -0.038443  0.173811 -0.139624  ... -0.050674  0.010334  0.036883
   4  -0.079142  0.143435  0.046703  ... -0.120889 -0.083490 -0.023484
   ..       ...       ...       ...  ...       ...       ...       ...
   70  0.176209  0.007061 -0.003777  ... -0.029502  0.080198  0.081605
   71  0.128383 -0.049567  0.295639  ... -0.074187  0.145753  0.127859
   72  0.152052  0.038522  0.053492  ... -0.180567  0.031941 -0.109041
   73  0.115734  0.046939  0.022689  ... -0.116055 -0.073372  0.161657
   74  0.126625  0.031565  0.037463  ...  0.023411 -0.058702 -0.061590

   [75 rows x 44 columns]

   which we might want to sort by their magnitude to see which features (in this case, words) are most important in each principal component, e.g., for PC1:

   loadings["word"] = pres_speech.columns
   loadings["rank"] = loadings[0].abs().rank(ascending=False)
   loadings = loadings.rename(columns={0: "PC1"})
   loadings[["rank", "word", "PC1"]].sort_values("rank").head()

       rank     word       PC1
   67   1.0  program  0.218579
   12   2.0     help  0.198214
   63   3.0      job  0.187749
   61   4.0   budget  0.186904
   58   5.0  billion  0.179213

2. The proportion of variance explained by each principal component:

   var_explained = pca.explained_variance_ratio_

   which we can visualize in a scree plot:

   plt.plot(np.cumsum(var_explained), marker="o")
   plt.xlabel("Number of Components")
   plt.ylabel("Cumulative Proportion of Variance Explained")
   plt.show()



Multidimensional Scaling (MDS)

Multidimensional scaling (MDS) aims to find a lower-dimensional representation of the data that preserves the pairwise distances between data points as much as possible.

Given data \(\mathbf{X} \in \mathbb{R}^{n \times p}\) and a pre-specified choice of the number of dimensions \(r\), MDS solves the following optimization problem:

\[\begin{align*} \hat{\mathbf{Z}} = \underset{\mathbf{Z} \in \mathbb{R}^{n \times r}}{\operatorname{argmin}} \;\; \sum_{i \neq j} \big( \underbrace{\lVert \mathbf{x}_i - \mathbf{x}_j \rVert_2}_{\substack{\text{distance between }\\\text{points } i \text{ and } j \\\text{ in \textbf{original space}}}} - \underbrace{\lVert \mathbf{z}_i - \mathbf{z}_j \rVert_2}_{\substack{\text{distance between }\\\text{points } i \text{ and } j \\\text{ in \textbf{low-dim space}}}} \big)^2, \end{align*}\]

In words, MDS tries to find a new set of points \(\hat{\mathbf{Z}} \in \mathbb{R}^{n \times r}\) in the lower \(r\)-dimensional space such that the pairwise Euclidean distances between the points in the lower-dimensional space are similar to the original distances.

Note that MDS can be applied to scenarios where we don’t have direct access to the data \(\mathbf{X}\), but we have access to the pairwise distances between the data points \(D_{ij} = \lVert \mathbf{x}_i - \mathbf{x}_j \rVert_2\). In this case, we can use the pairwise distance matrix \(\mathbf{D} \in \mathbb{R}^{n \times n}\), where \(D_{ij} = \lVert \mathbf{x}_i - \mathbf{x}_j \rVert_2\), as the input to MDS. There has also been numerous extensions of MDS, which allow for the use of other distance metrics in place of the Euclidean distance shown here.

Summary

• MDS is a dimension reduction method that aims to find a lower-dimensional representation of the data that preserves the pairwise distances between data points.
• MDS is particular useful when we only have access to the pairwise distances between data points (and not the actual data points themselves).

Implementation

R

mds_out <- cmdscale(dist(pres_speech), k = 2)
scores <- as.data.frame(mds_out) |>
  setNames(paste0("MDS", 1:ncol(mds_out)))
plot_scatter(
  scores, color = pres_period, labels = rownames(pres_speech)
)

Python

from sklearn.manifold import MDS

mds = MDS(n_components=2)
scores = pd.DataFrame(mds.fit_transform(pres_speech))
scores.columns = [f"MDS{i+1}" for i in range(scores.shape[1])]
plot_scatter(
  scores, color=pres_period, labels=pres_speech.index
)

Independent Components Analysis (ICA)

Whereas PCA decomposes the data into a set of orthogonal components, Independent Components Analysis (ICA) aims to decompose the data into statistically independent components.

Given a (centered) data matrix \(\mathbf{X} \in \mathbb{R}^{n \times p}\) and a pre-specified number of components \(r\), ICA assumes that there exists a set of \(r\) statistically independent (“source”) components \(\mathbf{S} \in \mathbb{R}^{n \times r}\) such that the data \(\mathbf{X}\) can be represented as a linear combination of the statistically independent components \(\mathbf{S}\). That is, ICA assumes that \[\begin{align*} \mathbf{X} = \mathbf{S} \mathbf{A}, \end{align*}\] where \(\mathbf{A} \in \mathbb{R}^{r \times p}\) is a mixing matrix (i.e., a set of linear weights). The goal of ICA then is to “un-mix” the data by estimating an un-mixing matrix \(\mathbf{W} \in \mathbb{R}^{r \times r}\) such that \[\begin{align*} \mathbf{X} \mathbf{W} = \mathbf{S}. \end{align*}\] (If \(\mathbf{A}\) were a square matrix, one could think of this \(\mathbf{W}\) as something like an inverse matrix of \(\mathbf{A}\).)

Under these modeling assumptions, the Central Limit Theorem tells us that the signal in the data \(\mathbf{X}\) will tend to be more Gaussian than the independent source components \(\mathbf{S}\) (this is because \(\mathbf{X}\) is a linear combination of these source components). Thus, ICA searches for an un-mixing matrix \(\mathbf{W}\) that maximizes the non-Gaussianity of the source components \(\mathbf{S}\).

Note that ICA is known to be highly sensitive to noise. Thus, it is often recommended to apply ICA after first applying PCA.

Summary

• ICA aims to decompose the data into a linear combination of statistically independent source components.
• ICA is most effective when we believe that the underlying source signals are highly non-Gaussian.
  • Consequently, ICA has been widely used and successful in signal processing applications (e.g., the “cocktail” problem).

Implementation

R

library(fastICA)

ica_out <- fastICA::fastICA(pres_speech, n.comp = 2)
scores <- as.data.frame(ica_out$S) |>
  setNames(paste0("IC", 1:ncol(ica_out$S)))
plot_scatter(
  scores, color = pres_period, labels = rownames(pres_speech)
)

To further interpret the ICA results, we can also take a look at the mixing matrix \(\mathbf{A} \in \mathbb{R}^{r \times p}\), which tells us how much each feature contributes to each independent component:

mixing_matrix <- as.data.frame(ica_out$A)

which we might want to sort by their magnitude to see which features (in this case, words) are most important in each component, e.g., for the first IC:

as.data.frame(t(mixing_matrix)) |>
  dplyr::mutate(
    word = colnames(pres_speech),
    rank = rank(-abs(V1)),
    IC1 = sprintf("%s (%.2f)", word, V1)
  ) |>
  dplyr::arrange(rank) |>
  dplyr::select(rank, IC1) |>
  head()

    rank             IC1
V68    1 program (-2.05)
V13    2    help (-1.90)
V62    3  budget (-1.75)
V64    4     job (-1.70)
V59    5 billion (-1.65)
V71    6   today (-1.61)

Python

from sklearn.decomposition import FastICA

ica = FastICA(n_components=2)
scores = pd.DataFrame(ica.fit_transform(pres_speech))
scores.columns = [f"IC{i+1}" for i in range(scores.shape[1])]
plot_scatter(
  scores, color=pres_period, labels=pres_speech.index
)

To further interpret the ICA results, we can also take a look at the mixing matrix \(\mathbf{A} \in \mathbb{R}^{r \times p}\), which tells us how much each feature contributes to each independent component:

mixing_matrix = pd.DataFrame(ica.mixing_)

which we might want to sort by their magnitude to see which features (in this case, words) are most important in each component, e.g., for the first IC:

mixing_matrix["word"] = pres_speech.columns
mixing_matrix["rank"] = mixing_matrix[0].abs().rank(ascending=False)
mixing_matrix = mixing_matrix.rename(columns={0: "IC1"})
mixing_matrix[["rank", "word", "IC1"]].sort_values("rank").head()

    rank     word       IC1
67   1.0  program -2.041081
12   2.0     help -1.895616
61   3.0   budget -1.738113
63   4.0      job -1.674230
58   5.0  billion -1.642265

Non-negative Matrix Factorization (NMF)

Non-negative Matrix Factorization (NMF) is a dimension reduction method, which requires non-negative data as input, and aims to decompose the data into a linear combination of two low-rank matrices — one capturing patterns in the sample/observation space (i.e., the “scores”) and the other capturing patterns in the feature space (i.e., the “loadings”).

Formally, given a non-negative data matrix \(\mathbf{X} \in \mathbf{R}^{n \times p}\) (i.e., each entry in \(\mathbf{X}\) is non-negative) and given a pre-specified number of components \(r\), NMF solves the optimization problem: \[\begin{align*} \hat{\mathbf{W}}, \hat{\mathbf{H}} = \underset{\mathbf{W} \geq 0, \mathbf{H} \geq 0}{\operatorname{argmin}} \;\; \lVert \mathbf{X} - \mathbf{W}\mathbf{H} \rVert_F^2, \end{align*}\] where \(\hat{\mathbf{W}} \in \mathbb{R}^{n \times r}\) is the “scores” matrix and \(\hat{\mathbf{H}} \in \mathbb{R}^{r \times p}\) is the “loadings” matrix.

In other words, NMF tries to find two non-negative, low-rank matrices \(\mathbf{W}\) and \(\mathbf{H}\) such that their product approximates the original data matrix \(\mathbf{X}\) as closely as possible, that is, \[\begin{align*} \mathbf{X} \approx \mathbf{W}\mathbf{H}. \end{align*}\] Moreover, we can interpret the columns of \(\mathbf{W}\) as the “scores” of the data points in the lower-dimensional space (analogous to the PC scores) and the columns of \(\mathbf{H}\) as the “loadings” of the features in the lower-dimensional space (analogous to the PC loadings).

NMF is typically referred to as a “low-rank” approximation method. A low-rank approximation method is one that tries to simplify a complex data matrix (e.g., \(\mathbf{X}\)) by approximating it with smaller/simpler/low-rank matrices (e.g., \(\mathbf{W}\) and \(\mathbf{H}\)).

Summary

• NMF aims to find a low-rank approximation of the data matrix \(\mathbf{X}\) by factorizing it into two simpler matrices \(\mathbf{W}\) (the sample scores) and \(\mathbf{H}\) (the feature loadings).
• NMF requires that the input data have all non-negative entries. Though this can be a limitation, this also makes NMF particularly useful for data that is inherently non-negative (e.g., word counts, image data, etc.) as it exploits this special structure.

Implementation

R

# note if you need to install NMF in renv, you may need to first install the Biobase R package via `renv::install("bioc::Biobase")`
library(NMF)

nmf_out <- NMF::nmf(pres_speech, rank = 2)
scores <- as.data.frame(nmf_out@fit@W) |>
  setNames(paste0("NMF", 1:ncol(nmf_out@fit@W)))
plot_scatter(
  scores, color = pres_period, labels = rownames(pres_speech)
)

To further interpret the NMF results, we can also take a look at the feature loadings matrix \(\mathbf{H} \in \mathbb{R}^{r \times p}\), which tells us how much each feature contributes to each NMF component:

h <- nmf_out@fit@H

which we might want to sort by their magnitude to see which features (in this case, words) are most important in each component, e.g., for the first NMF component:

as.data.frame(t(h)) |>
  tibble::rownames_to_column("word") |>
  dplyr::mutate(
    rank = rank(-abs(V1)),
    NMF1 = sprintf("%s (%.2f)", word, V1)
  ) |>
  dplyr::arrange(rank) |>
  dplyr::select(rank, NMF1) |>
  head()

  rank            NMF1
1    1     upon (0.80)
2    2  subject (0.71)
3    3    shall (0.70)
4    4 consider (0.68)
5    5   treati (0.64)
6    6   provis (0.62)

Python

from sklearn.decomposition import NMF

nmf = NMF(n_components=2)
scores = pd.DataFrame(nmf.fit_transform(pres_speech))
scores.columns = [f"NMF{i+1}" for i in range(scores.shape[1])]
plot_scatter(
  scores, color=pres_period, labels=pres_speech.index
)

To further interpret the NMF results, we can also take a look at the feature loadings matrix \(\mathbf{H} \in \mathbb{R}^{r \times p}\), which tells us how much each feature contributes to each NMF component:

h = pd.DataFrame(nmf.components_.T)

which we might want to sort by their magnitude to see which features (in this case, words) are most important in each component, e.g., for the first NMF component:

h["word"] = pres_speech.columns
h["rank"] = h[0].abs().rank(ascending=False)
h = h.rename(columns={0: "NMF1"})
h[["rank", "word", "NMF1"]].sort_values("rank").head()

    rank     word      NMF1
67   1.0  program  5.121076
12   2.0     help  5.050423
20   3.0     need  4.756651
34   4.0  america  4.723036
43   5.0   econom  4.469295

t-Distributed Stochastic Neighbor Embedding (tSNE)

t-Distributed Stochastic Neighbor Embedding (tSNE) is a nonlinear dimension reduction method which aims to preserve the local neighborhood structure of the data.

At a high-level, the idea behind tSNE is to model the pairwise similarities (or neighborhood structure) between data points in the high-dimensional space and the low-dimensional space. In particular, tSNE defines a probability distribution over pairs of data points in the high-dimensional space based on their similarities (e.g., based on the Euclidean distance between the data points). It then defines a similar probability distribution over pairs of data points in the low-dimensional space. The goal of tSNE is then to find the low-dimensional representation of the data that minimizes the difference between these two probability distributions.

The details of how tSNE actually does this is perhaps too involved to present in this notebook. However, if you would like to learn more, here is a great tutorial.

What’s important to know for practical purposes:

• tSNE requires a pre-specified number of dimensions for the lower-dimensional space. Typically, tSNE is run with 2 or 3 dimensions.
• Often, PCA is performed before running tSNE to reduce the dimensionality of the data and to speed up the tSNE algorithm. This also helps tSNE to avoid the “curse of dimensionality”, which can be a major problem when computing distances between points in high dimensions (as is done in the tSNE algorithm).
• tSNE often does a great job at preserving the local structure of the data, but sometimes at the cost of losing the global structure. In other words, when interpreting a tSNE output, it is best practice to de-emphasize the relative distance or position of points/clusters that are far apart from each other.
• As part of tSNE’s probability model, there is an important hyperparameter, referred to as “perplexity”, which acts like a bandwidth for how flexible the tSNE embedding can be. This hyperparameter can substantially affect the tSNE output.

I would highly encourage you to check out this fantastic blog post on tSNE which provides great intuition for how the hyperparameters of tSNE (e.g., perplexity) can affect the resulting embeddings. It also gives great insight into the tradeoff between preserving local and global structure in tSNE and how to best interpret the results.

Summary

• tSNE is a nonlinear dimension reduction method, which aims to preserve the probability distribution of neighboring points between the original space and the lower-dimensional space.
• tSNE is often great at preserving the local structure of the data, but at the cost of losing the global structure. This tradeoff is partially controlled by the perplexity hyperparameter in tSNE.

Implementation

R

library(Rtsne)

tsne_out <- Rtsne::Rtsne(pres_speech, dims = 2, perplexity = 5)
scores <- as.data.frame(tsne_out$Y) |>
  setNames(paste0("tSNE", 1:ncol(tsne_out$Y)))
plot_scatter(
  scores, color = pres_period, labels = rownames(pres_speech)
)

Python

from sklearn.manifold import TSNE

tsne = TSNE(n_components=2, perplexity=5)
scores = pd.DataFrame(tsne.fit_transform(pres_speech))
scores.columns = [f"tSNE{i+1}" for i in range(scores.shape[1])]
plot_scatter(
  scores, color=pres_period, labels=pres_speech.index
)

Uniform Manifold Approximation and Projection (UMAP)

Like tSNE, Uniform Manifold Approximation and Projection (UMAP) is a nonlinear dimension reduction method that aims to preserve the local neighborhood structure of the data. However, unlike tSNE, UMAP is generally thought to be better at preserving the global structure of the data (but not always).

At a high-level, UMAP constructs a high-dimensional graph representation of the data, where each data point is connected to its nearest neighbors in the original space. UMAP then constructs a low-dimensional graph representation of the data and tries to preserve the graph structure between the high-dimensional and low-dimensional representations. The key idea behind UMAP is to find a low-dimensional representation of the data that minimizes the cross-entropy between the high-dimensional and low-dimensional graph representations.

Again, the details of how UMAP actually does this is perhaps too involved to present in this notebook. (In fact, to rigorously present UMAP, we would need to introduce manifold learning and topological data analysis.) However, if you would like to learn more, here is a great and accessible tutorial on UMAP.

What’s important to know for practical purposes:

• UMAP requires a pre-specified number of dimensions for the lower-dimensional space. Typically, UMAP is run with 2 or 3 dimensions.
• Often, PCA is performed before running UMAP to reduce the dimensionality of the data and to speed up the UMAP algorithm. This also helps UMAP to avoid the “curse of dimensionality”, which can be a major problem when computing distances between points in high dimensions (as is done in the UMAP algorithm).
• UMAP has a few hyperparameters that can substantially affect the UMAP output, including the “number of neighbors” to consider when constructing the high-dimensional graph and the “minimum distance” hyperparameter which controls the minimum distance between points in the low-dimensional space. Like tSNE, the output of UMAP can change substantially based on these hyperparameters.

Summary

• UMAP is a nonlinear dimension reduction method based on manifold learning and ideas from topological data analysis (like building neighborhood graph representations).
• UMAP is generally thought to be better at preserving the global structure of the data compared to tSNE.
• However, UMAP still depends on a few hyperparameters (like the number of neighbors and the minimum distance) that can substantially affect the output.

Implementation

R

library(umap)

umap_out <- umap::umap(
  pres_speech, n_components = 2, n_neighbors = 15, min_dist = 0.1
)
scores <- as.data.frame(umap_out$layout) |>
  setNames(paste0("UMAP", 1:ncol(umap_out$layout)))
plot_scatter(
  scores, color = pres_period, labels = rownames(pres_speech)
)

Python

import umap

umap_out = umap.UMAP(n_components=2, n_neighbors=15, min_dist=0.1)
scores = pd.DataFrame(umap_out.fit_transform(pres_speech))
scores.columns = [f"UMAP{i+1}" for i in range(scores.shape[1])]
plot_scatter(
  scores, color=pres_period, labels=pres_speech.index
)

Autoencoders

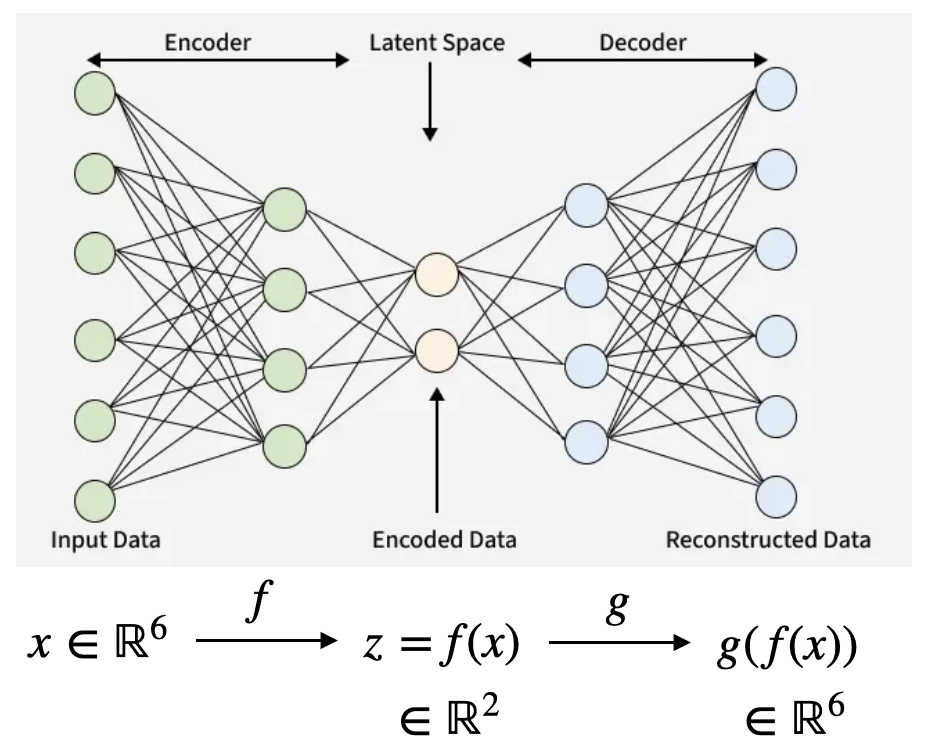

Autoencoders are a type of neural network architecture that can be used for dimension reduction. Generally, an autoencoder consists of two main components: an encoder and a decoder. The encoder \(f\) maps the input data \(x\) to a lower-dimensional latent representation \(z = f(x)\), while the decoder \(g\) maps the latent representation back to the original data space \(x' = g(z) = g(f(x))\).

To learn the parameters (or weights) in the autoencoder, the neural network is trained to minimize the reconstruction error between the original data and the reconstructed data: \[\begin{align*} \lVert x - x' \rVert^2_2 = \lVert x - g(f(x)) \rVert^2_2. \end{align*}\] In other words, the autoencoder is trained to learn a compressed representation of the data that can be used to reconstruct the original data as accurately as possible.

What’s important to know for practical purposes:

• While autoencoders can be very powerful tools, they typically require a large amount of data to train effectively and can be computationally intensive.
• Autoencoders can be designed with various architectures (e.g., deep, convolutional) depending on the nature of the data and the specific application. This flexibility is both a blessing and a curse, as it allows for tailored solutions but also requires careful design and tuning since different architectures and hyperparameters can lead to vastly different results.
• In modern practice, variational autoencoders (VAEs) are often used instead of ordinary autoencoders. VAEs introduce a probabilistic framework to the autoencoder architecture, allowing analysts to also generate new data points using the learned latent space.

Summary

• Autoencoders are a type of neural network architecture used for dimension reduction, consisting of an encoder and a decoder.
• They learn a compressed representation of the data by minimizing the reconstruction error between the original and reconstructed data.
• Variational autoencoders (VAEs) extend this idea by introducing a probabilistic framework, enabling the generation of new data points.

Other Dimension Reduction methods

Other popular dimension reduction methods that are not covered in this notebook but are of interest:

• Isomap
• Locally Linear Embedding (LLE)
• And many more…

Clustering

K-means

K-means clustering is a simple and popular clustering algorithm that aims to find \(K\) clusters (i.e., groups) in the data which result in the smallest within-cluster variance.

More precisely, given data \(\mathbf{x}_1, \ldots, \mathbf{x}_n \in \mathbb{R}^{p}\) and a pre-specified number of clusters \(K\), K-means aims to find the cluster assignments \(\hat{z}_1, \ldots, \hat{z}_n \in \{1, \ldots, K\}\) that minimize the following objective function: \[\begin{align*} \hat{z}_1, \ldots, \hat{z}_n = \underset{z_1, \ldots, z_n}{\operatorname{argmin}} \;\; \sum_{k=1}^K \sum_{i: z_i = k} \lVert \mathbf{x}_i - \mathbf{c}_k \rVert_2^2 \qquad \text{subject to} \;\; \mathbf{c}_k = \frac{1}{\lvert \{i: z_i = k\} \rvert} \sum_{i: z_i = k} \mathbf{x}_i. \end{align*}\]

Intuitively:

• \(\hat{z}_i\) is the cluster assignment of the \(i^{th}\) data point \(\mathbf{x}_i\) (e.g., \(\hat{z}_i = 1\) means that the \(i^{th}\) data point belongs to the first cluster);
• \(\mathbf{c}_k\) is the center point of the \(k^{th}\) cluster, or equivalently, the average of all samples assigned to cluster \(k\).

Thus, an equivalent interpretation of this mathematical formulation is that K-means is trying to find the cluster assignments that minimize the within-cluster variance, defined as the sum of the squared Euclidean distances between each data point and its assigned cluster center.

K-means optimization algorithm

So how do we solve this optimization problem? K-means is typically solved using an iterative algorithm that alternates between updating the cluster assignments and updating the cluster centers. That is, the K-means algorithm proceeds as follows:

0. Initialize the cluster centers: Randomly initialize the cluster centers \(\mathbf{c}_1, \ldots, \mathbf{c}_K\). Typically, the cluster centers are initialized by randomly selecting \(K\) data points from the dataset.
1. Update the cluster assignments: Assign each data point to the cluster with the nearest cluster center, i.e., \(\hat{z}_i = \underset{k}{\operatorname{argmin}} \lVert \mathbf{x}_i - \mathbf{c}_k \rVert_2^2\).
2. Update the cluster centers: Update the cluster centers to be the average of all data points assigned to that cluster, i.e., \(\mathbf{c}_k = \frac{1}{\lvert \{i: \hat{z}_i = k\} \rvert} \sum_{i: \hat{z}_i = k} \mathbf{x}_i\).
3. Repeat steps 2 and 3 until convergence: Repeat steps 2 and 3 until the cluster assignments no longer change or until some other stopping criterion is met.

An illustration of how this algorithm works is shown in the figure below (astericks denote the cluster centers):

# code to understand K-means algorithm
kmeans_movie <- function(X, K, max_iter = 2) {
  n <- nrow(X)
  X <- as.data.frame(X)
  x_var <- colnames(X)[1]
  y_var <- colnames(X)[2]
  plt_ls <- list()
  plt_idx <- 1

  # step 1: initialize cluster centers
  init_centers_idx <- sample(1:n, K)
  cluster_centers <- X[init_centers_idx, ]
  plt_ls[[plt_idx]] <- ggplot2::ggplot(X) +
    ggplot2::aes(
      x = .data[[x_var]],
      y = .data[[y_var]]
    ) +
    ggplot2::geom_point() +
    ggplot2::geom_point(
      data = cluster_centers |>
        dplyr::mutate(.cluster = factor(1:K)),
      ggplot2::aes(color = .cluster),
      shape = 8, size = 3
    ) +
    ggplot2::labs(
      color = "Cluster ID",
      title = "Initialize cluster centers"
    ) +
    ggplot2::theme_classic() +
    ggplot2::guides(color = "none")
  plt_idx <- plt_idx + 1

  for (iter in 1:max_iter) {
    # step 2: update cluster assignments
    cluster_ids <- purrr::map(
      1:K,
      function(k) {
        cluster_centers_mat <- matrix(
          as.matrix(cluster_centers[k, ]),
          nrow = n, ncol = ncol(cluster_centers), byrow = TRUE
        )
        rowSums((as.matrix(X) - cluster_centers_mat)^2)
      }
    ) |>
      purrr::reduce(cbind) |>
      apply(1, which.min)
    plt_ls[[plt_idx]] <- X |>
      dplyr::mutate(
        .cluster = as.factor(cluster_ids)
      ) |>
      ggplot2::ggplot() +
      ggplot2::aes(
        x = .data[[x_var]],
        y = .data[[y_var]],
        color = .cluster
      ) +
      ggplot2::geom_point() +
      ggplot2::geom_point(
        data = cluster_centers |>
          dplyr::mutate(.cluster = factor(1:K)),
        shape = 8, size = 3
      ) +
      ggplot2::labs(
        color = "Cluster ID",
        title = "Updated cluster assignments"
      ) +
      ggplot2::theme_classic()
    plt_idx <- plt_idx + 1

    # update cluster centers
    cluster_centers <- X |>
      dplyr::mutate(
        .cluster = as.factor(cluster_ids)
      ) |>
      dplyr::group_by(.cluster) |>
      dplyr::summarize(
        across(
          .cols = everything(),
          .fns = mean
        )
      )
    plt_ls[[plt_idx]] <- X |>
      dplyr::mutate(
        .cluster = as.factor(cluster_ids)
      ) |>
      ggplot2::ggplot() +
      ggplot2::aes(
        x = .data[[x_var]],
        y = .data[[y_var]],
        color = .cluster
      ) +
      ggplot2::geom_point() +
      ggplot2::geom_point(
        data = cluster_centers,
        shape = 8, size = 3
      ) +
      ggplot2::labs(
        color = "Cluster ID",
        title = "Updated cluster centers"
      ) +
      ggplot2::theme_classic()
    plt_idx <- plt_idx + 1

    cluster_centers <- cluster_centers |>
      dplyr::select(-.cluster) |>
      dplyr::ungroup()
  }

  return(plt_ls)
}

# run kmeans using first 2 PCs of the presidential speech dataset for ease of visualizations
X <- pca_out$x[, 1:2]
kmeans_movie_plts <- kmeans_movie(X, K = 3, max_iter = 2)
plt <- patchwork::wrap_plots(kmeans_movie_plts, nrow = 1, guides = "collect") +
  patchwork::plot_layout(axis_titles = "collect")
plt

When using K-means in practice, there are three important things to keep in mind:

• Given the complexity of this optimization problem, the above K-means algorithm is only guaranteed to converge to a local minimum of the objective function, not necessarily the global minimum. As a consequence, the K-means solution can sometimes depend on the initial cluster centers. It is common (and the default implementation in many software packages) to run the K-means algorithm multiple times, each with a different initialization, and then to select the cluster assignments that leads to the smallest within-cluster variance.
• In K-means, data points are assigned to the cluster whose center is closest to them. Thus, for K-means to work well, the clusters should be relatively spherical and have similar sizes. If the clusters are not spherical, K-means can produce suboptimal results.
• K-means relies on the Euclidean distance to measure the similarity between data points. However, in high-dimensional settings, distances are often not “meaningful” since everything is far apart in such large spaces (this is known as the curse of dimensionality). Thus, it is often recommended to apply PCA or other dimension reduction methods before running K-means.

Summary

• K-means is a clustering method, which aims to find \(K\) clusters in the data that minimize the within-cluster variance.
• K-means works well when the clusters are relatively spherical and have similar sizes. This is due to the fact that data points are assigned to the cluster whose center is closest to them in the K-means algorithm.

Implementation

R

kmeans_out <- stats::kmeans(pres_speech, centers = 4)
cluster_assignments <- kmeans_out$cluster
cluster_centers <- kmeans_out$centers
scores <- as.data.frame(pca_out$x[, 1:2]) |>
  dplyr::mutate(cluster = as.factor(cluster_assignments))
plot_scatter(
  scores, color = as.factor(cluster_assignments), labels = rownames(pres_speech)
) +
  ggplot2::labs(color = "Clusters")

Python

from sklearn.cluster import KMeans

kmeans = KMeans(n_clusters=4)
cluster_assignments = kmeans.fit_predict(pres_speech)
cluster_centers = kmeans.cluster_centers_
plot_scatter(
  pca_scores, color=cluster_assignments, labels=pres_speech.index
)

Hierarchical Clustering

Hierarchical clustering is a clustering method that aims to build a nested hierarchy of clusters. Unlike K-means, hierarchical clustering does not require a pre-specified number of clusters \(K\). Instead, hierarchical clustering produces a tree-like structure of clusters, known as a dendrogram, from which one can obtain the cluster assignments for any desired number of clusters.

The key idea behind (agglomerative) hierarchical clustering is to iteratively merge clusters that are “closest” together. Thus, one needs a way to define two types of distances: (1) the distance between two individual data points, and (2) the distance between two clusters. For the former, traditional distance metrics (e.g., Euclidean (\(\ell_2\)), \(\ell_1\), or Mahalanobis distances) can be used. For the latter, several different linkages (i.e., distance metrics for clusters) have been introduced, such as:

• Single linkage: The distance between two clusters is defined as the minimum distance between any two points in the two clusters.
• Complete linkage: The distance between two clusters is defined as the maximum distance between any two points in the two clusters.
• Average linkage: The distance between two clusters is defined as the average distance between all pairs of points in the two clusters.
• Ward’s linkage: The distance between two clusters is defined as the increase in the within-cluster variance that results from merging the two clusters.

Each of these linkages has their own advantages and disadvantages, which can have a substantial impact on the resulting clusters and dendrogram. We briefly summarize the differences between these linkages below:

• Single linkage: Single linkage is often very sensitive to outliers and tends to produce extended, trailing clusters that are formed by fusing observations one at a time (i.e., “chaining”). It frequently results in unbalanced clusters, but it can handle very diverse shapes.
• Complete linkage: Complete linkage is more robust to outliers than single linkage and tends to produce clusters with similar sizes. While it works well with spherical distributions, it can struggle with more elongated and diverse cluster shapes.
• Average linkage: Average linkage is a compromise between single and complete linkage.
• Ward’s linkage: Ward’s linkage is arguably the most popular linkage method. It is particularly useful when the clusters are relatively spherical and are normally distributed. However, it can struggle with very large datasets due to the higher computational complexity.

Moreover, as with K-means, since hierarchical clustering relies heavily on distances between points, it is often recommended to apply PCA or other dimension reduction methods before running hierarchical clustering to avoid the “curse of dimensionality”.

Summary

• Hierarchical clustering is a clustering method that produces a nested hierarchy of clusters, known as a dendrogram, which does not require choosing the number of clusters until after hierarchical clustering has been performed.
• There are many different linkage methods that can be used in hierarchical clustering, which can have a large impact on the clustering results.

Implementation

R

hc_out <- stats::hclust(dist(pres_speech), method = "ward.D")
cluster_assignments <- cutree(hc_out, k = 4)
scores <- as.data.frame(pca_out$x[, 1:2]) |>
  dplyr::mutate(cluster = as.factor(cluster_assignments))
plot_scatter(
  scores, color = as.factor(cluster_assignments), labels = rownames(pres_speech)
) +
  ggplot2::labs(color = "Clusters")

We can visualize the dendrogram using the ggdendro package:

library(ggdendro)

ggdendro::ggdendrogram(hc_out)

Python

from sklearn.cluster import AgglomerativeClustering

hc = AgglomerativeClustering(n_clusters=4, linkage="ward")
cluster_assignments = hc.fit_predict(pres_speech)
plot_scatter(
  pca_scores, color=cluster_assignments, labels=pres_speech.index
)

We can visualize the dendrogram using scipy’s dendrogram function as follows:

from scipy.cluster.hierarchy import dendrogram

def plot_dendrogram(model, **kwargs):
  # Create linkage matrix and then plot the dendrogram

  # create the counts of samples under each node
  counts = np.zeros(model.children_.shape[0])
  n_samples = len(model.labels_)
  for i, merge in enumerate(model.children_):
    current_count = 0
    for child_idx in merge:
      if child_idx < n_samples:
        current_count += 1  # leaf node
      else:
        current_count += counts[child_idx - n_samples]
    counts[i] = current_count

  linkage_matrix = np.column_stack([model.children_, model.distances_,
                                    counts]).astype(float)

  # Plot the corresponding dendrogram
  dendrogram(linkage_matrix, **kwargs)

hc = AgglomerativeClustering(distance_threshold=0, n_clusters=None)
hc = hc.fit(pres_speech)
plot_dendrogram(hc)
plt.show()

Other Clustering Methods

• Density-Based Spatial Clustering of Applications with Noise (DBSCAN)
• Gaussian Mixture Models (GMM)
• Spectral clustering
• Convex clustering
• And many more…
